CDA, TDA Diode Assemblies
Part Number | Type | Diode Configuration |
Average Rectified Forward Current |
Peak Non-Repetitive Forward Current |
Reverse Voltage |
911A001 | CDA | Single | 3 A | 100 A | 800 V |
911A002 | CDA | Dual | 3 A | 100 A | 800 V |
911A003 | CDA | Triple | 3 A | 100 A | 800 V |
910A001 | TDA | Single | 12 A | 300 A | 800 V |
910A002 | TDA | Dual | 12 A | 300 A | 800 V |
910A009 | TDA | Single | 16 A | 310 A | 1200 V |
910A010 | TDA | Dual | 16 A | 310 A | 1200 V |
910A011 | TDA | Single + Surge Protection |
12 A | 300 A | 800 V |
910A012 | TDA | Single + Surge Protection |
12 A | 300 A | 800 V |
Accessories
CDA, TDA Diode Assemblies
- Simple Installation
- Low Cost
- RoHS Compliant (Directive 2002/95/EC)

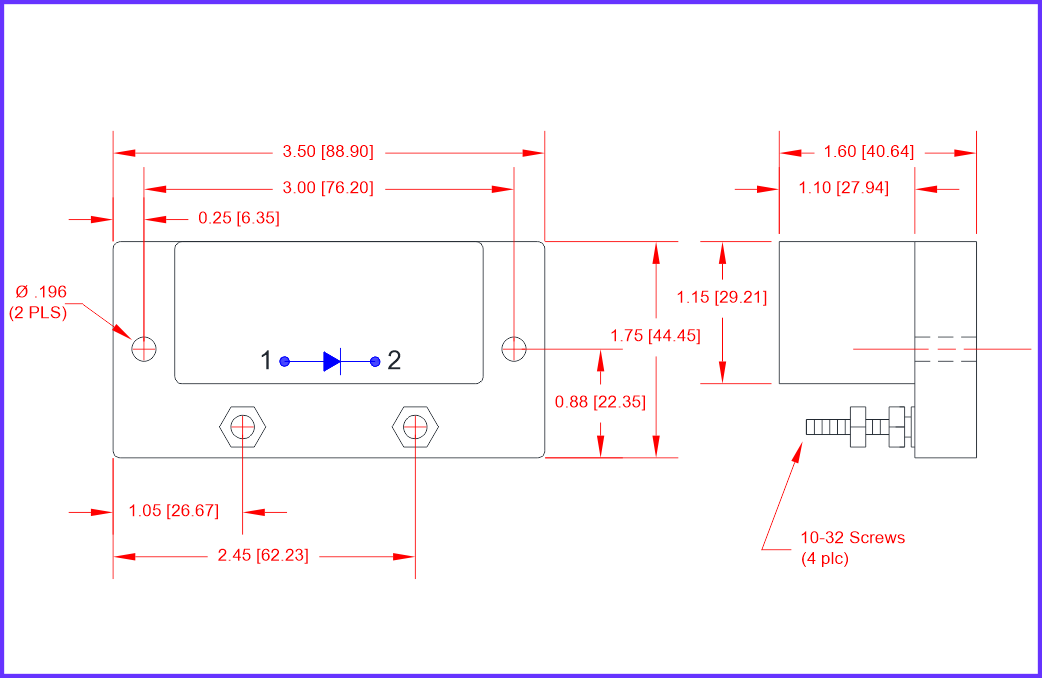

CDA — Control Diode Assembly
The Control Diode Assemblies are designed to supply diode isolation in control circuits. The CDA is molded of rugged glass-coupled acetal copolymer having high dielectric strength and rigid terminal studs for ease in mounting and connection. The CDA is available in single, dual and triple diode packages.
TDA — Tripping Diode Assembly
The Tripping Diode Assemblies are designed for rectifier isolation to trip more than one device. The line of TDAs include single and dual diode packages. The 910A011 and 910A012 feature surge suppression protection to the diode. Like the CDA, the TDA is molded of rugged glass-coupled acetal copolymer. Installation is easy and cost-effective.
E-MAX CDA and TDA Diode Assemblies are RoHS Compliant
The substances banned under RoHS are lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (CrVI), polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE).
